Induction sealing machinery products
Automatic inline induction foil sealing equipment for cap liners, bottles and jars. Each system should be selected around pack dimensions, liner specification, conveyor layout and required output.

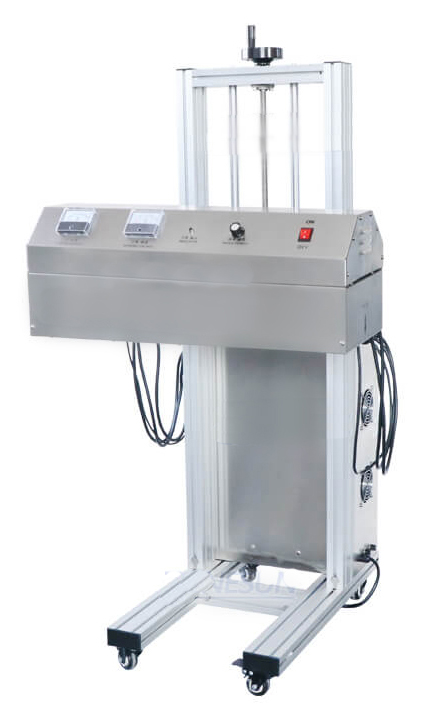

Automatic induction foil sealing machine
Air-cooled induction sealer with adjustable stand, induction head and controller for production-line sealing after capping.
- Common sealing head ranges from 15 mm to 130 mm
- Typical 220 V, 50 Hz, 4.2 kW reference unit
- Up to 260 bottles per minute depending on pack and setup
Head and cap range options
Specify the sealing head around cap diameter and pack geometry. Correct head selection helps avoid weak edges, overheating and inconsistent results.
- 15–60 mm
- 20–70 mm
- 35–85 mm
- 50–120 mm or 60–130 mm
What to specify before choosing a model
The correct induction sealer depends on more than the machine power rating. The container mouth, liner construction, closure torque, conveyor speed, pack spacing and desired seal quality all need to work together.
- Cap diameter and sealing land width
- Foil liner supplier and material stack
- Plastic or glass container material
- Bottle or jar height range
- Target output and conveyor speed
- Available line space and conveyor height
Want the correct induction sealer specified?
Send sample details and your production target for a practical recommendation.
